Solid State Tesla Coil Kits
Please see our updated components quantities! All kits now shipping with additional project boards, diodes, 2X 100k solderable mini potentiometers 3X TIP31 and extra stickers!
Basic Blocking Oscillator Official Teslatronix mini solid state Tesla coil Kit

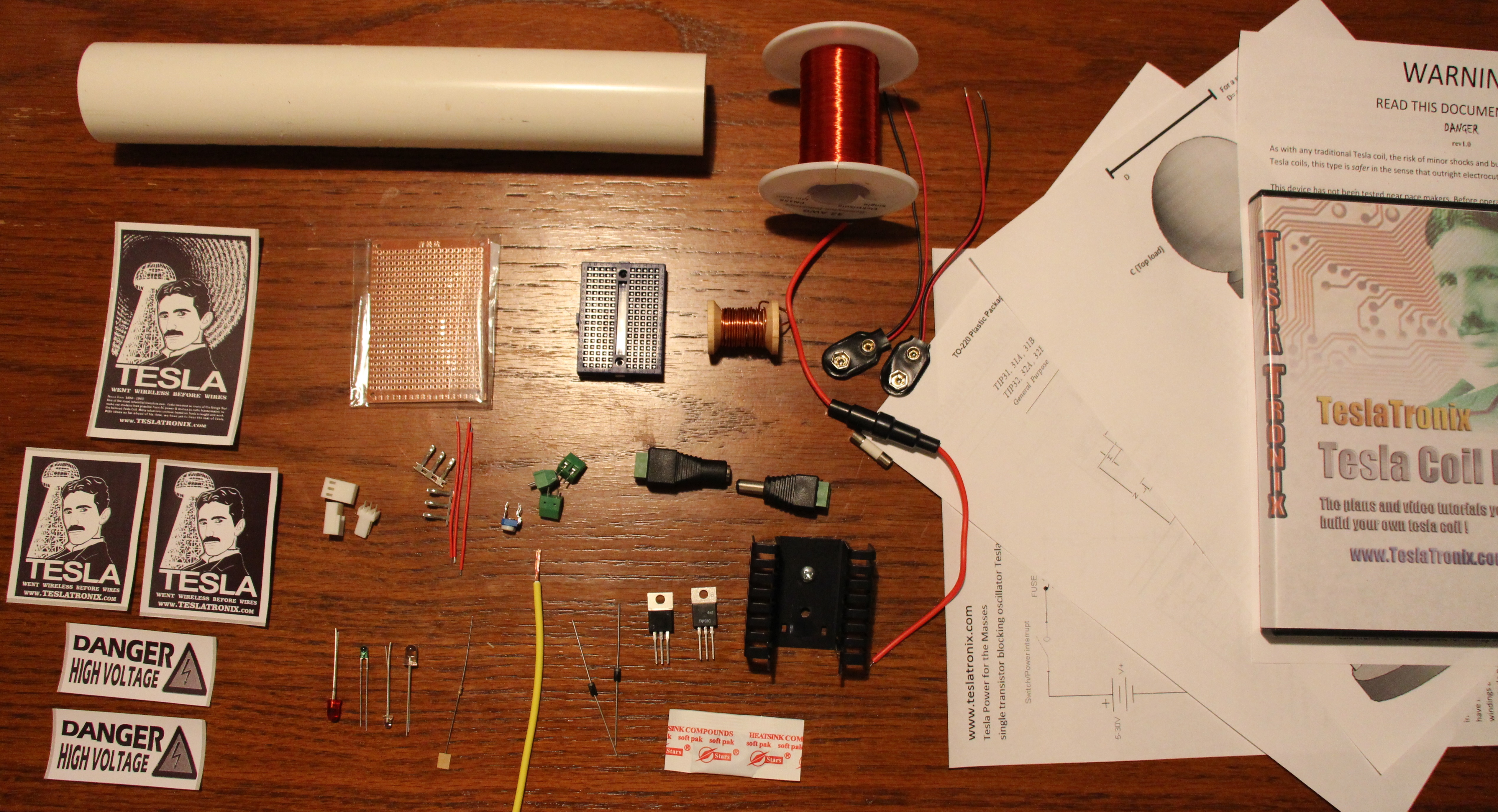

Parts list:
- mini breadboard (solderless) and 2x project board (solderable)
- male/female universal power adapters w/terminals
- 625-650 feet 32 AWG magnet wire
- Approximately 10.5 inches of PVC for L2 (coil is not pre wound)
- 3-4 feet 22 AWG magnet wire + wooden mini spool
- 3X TIP31C
- 1 male, + 2X female universal TO 220 transistor socket kit
- 3X tinned transistor socket kit leads
- Transistor heat sink with M3 hardware
- 2X 100KΩ Potentiometer
- 4x 1N4007 Diode
- electrical tape (currently out of stock)
- 2X 9V battery leads
- Several LEDs
- 3X bi-polar solderable terminals
- Instructional DVD digital download
- Envelope with warnings, instructions, and drawings
- Sticker pack
PVC “E” stand for Tesla coils parts list:
3X 3/4in PVC elbows, 1X 3/4in PVC T adapter, 2X 3in 3/4in PVC sections, 3X 1in inner couplings, 2X 3/4in PVC end caps

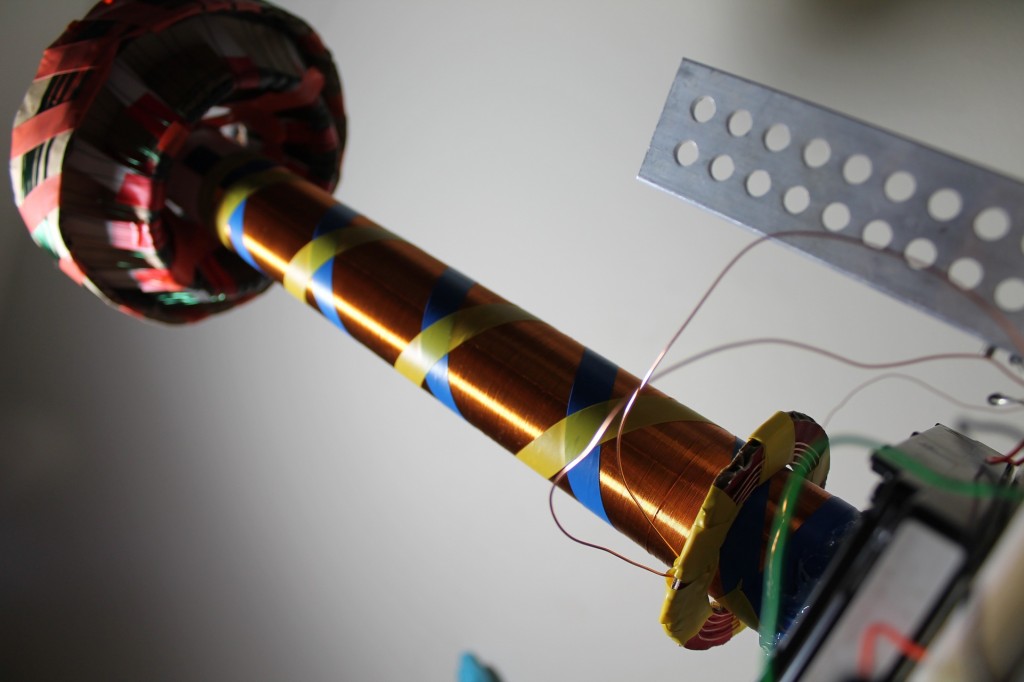

Example mini TeslaTronix Tesla coil build
Size= 4 Inches Additional parts:
- 1 1/4 inch PVC end cap with drilled hole
- washers for mounting top load
- Complete height for Teslatronix mini Tesla coil kit is approximately 15 inches!
PVC “E” stand for Tesla coils parts list: 3X 3/4in PVC elbows, 1X 3/4in PVC T adapter, 2X 3in 3/4in PVC sections, 3X 1in inner couplings, 2X 3/4in PVC end caps

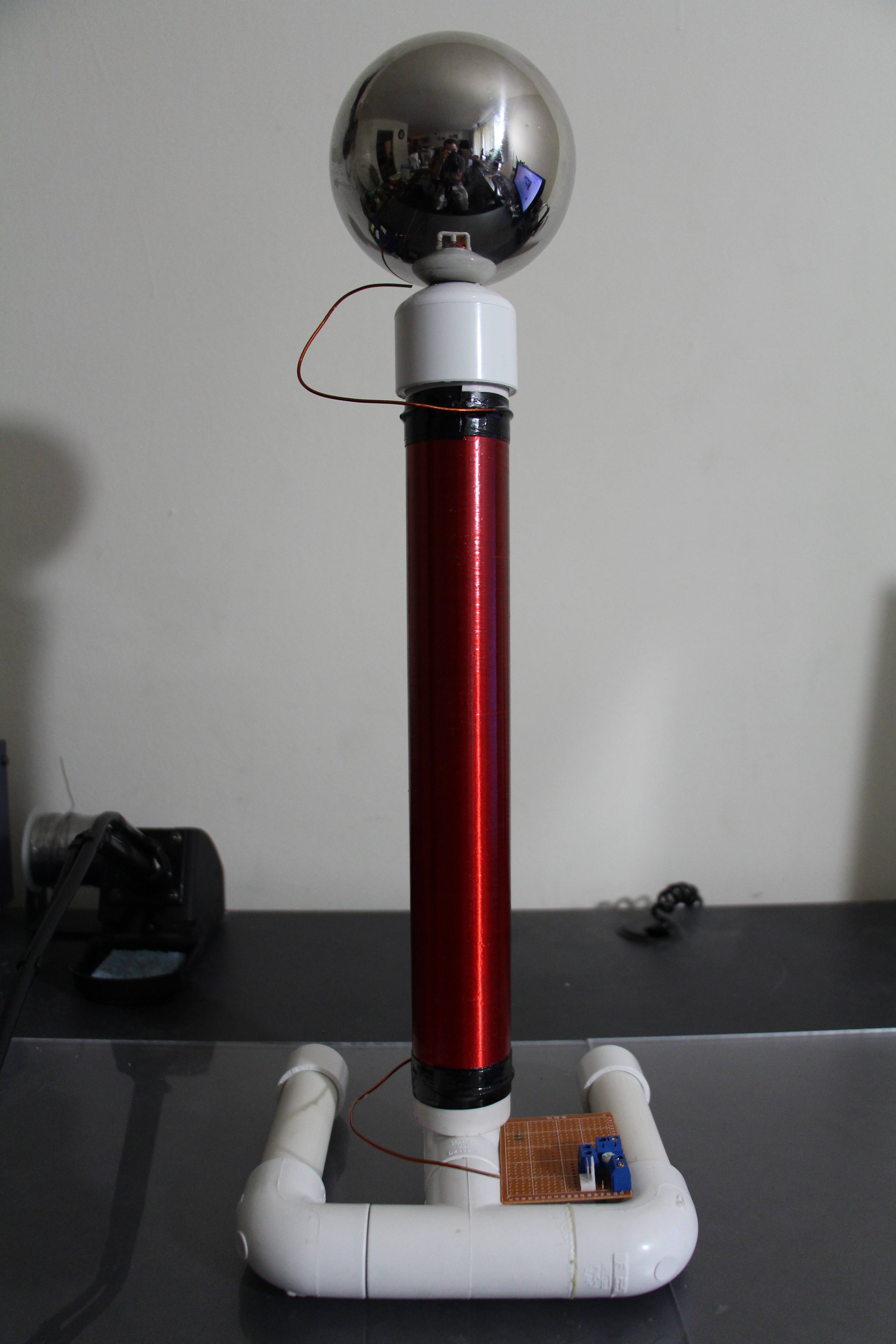

Mini Tesla coil kit with stand and sphere top load (example build, coil is not pre-wound)

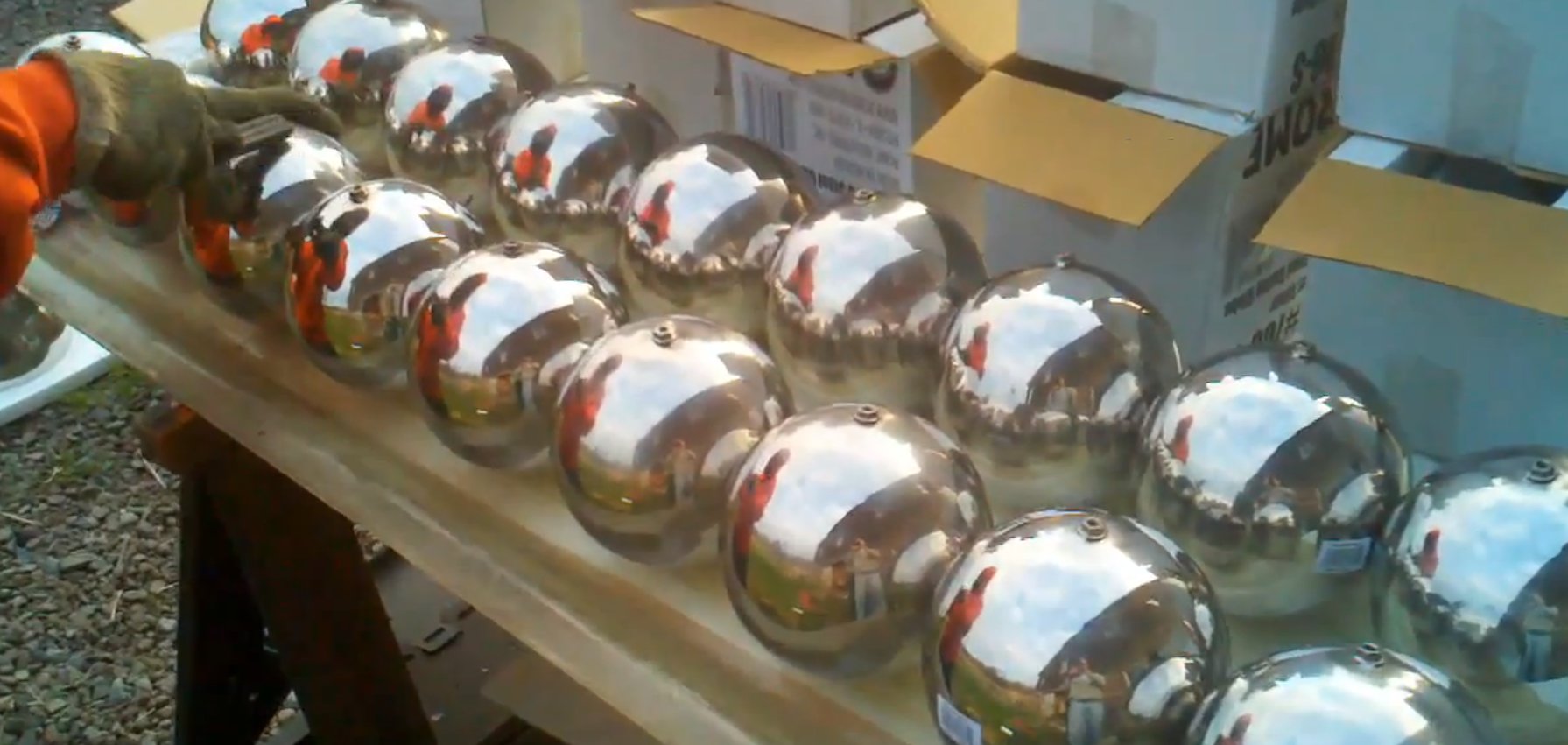

Teslatronix top load spheres. Toroid alternative.
Is anything you have to do differently with the metallic sphere toroid Tesla coil compared to the normal toroid coil?
The purpose of the top load is to act as an antenna/capacitor. As per Tesla, the sphere is better for wireless transmission of power. Our spheres ship with a 1/4 20 threaded nut, and that will falicitate mounting to the L2 via an end cap that can fit the L2. So for a 1 1/4 inch piece of PVC, a 1 1/4 inch PVC cap can be drilled, and a bolt and several washers can make the fit.
Hi, does the metallic sphere produce any sparks that arc through the air? Thanks!
Freestanding from the sphere? No, Free standing from the un loaded L2, yes. You can easily excite plasma from the top load, however.
Hi, nice project, but i want to know how hard is to wind the coil ? dont u sell winded ?
thanks!
If you follow the instructions provided with the DVD media, it is easy to wind the coil. Be prepared to spend a couple hours doing it however. Unfortunately at this time we do not offer pre wound kits.
What is the power source for this coil? Is it 3 9 V batteries?
I don’t see the primary coil on your sphere top load model. Where is it?
David
Any DC source from 9V-24V will work with a Teslatronix Tesla coil. It was not pictured in that particular shot.
is this practical to power 2 light bulbs all the time (how much power does it use) and how dangerous is it (can i touch any part of the coil or metal sphere?
